Motor Sports Yamaha YZF-R6, YZF-R1, FZ 1, FZ8N dan FZ8

Pernahkah sobat blogger melihat atau tau tentang gambaran Yamaha Motor Sport yang ada di luar negeri. Heem bagi pecinta motor sport Yamaha pasti sudah pada tau dong. Tapi bagi sobat blogger yang belum pada tau, di sini sobat blogger gak perlu cari-cari tempat lain lagi. Karna saya akan berbagi informasi tentang hal itu. Saya akan berikan motor Yamaha sport yang paling keren-keren saja ya menurut versi saya hehehehe. Memang sich kalau masalah body motor sport, Yamaha Motor Sport gak ada yang ngalahin dech. Mantab, keren, elegan, dan masih banyak lagi. tapi soal performance juga gak kalah hebat dari motor pabrikan lain sobat.
Untuk itu langsung saja kita lihat di bawah ini yuk sobat.

1. Yamaha YZF-R6






Untuk Spesifikasinya :

Total length ..........................: 2040mm
Overall Width .......................... : 705mm
Overall height .......................... : 1100mm
the seat height .......................... : 850mm
Wheelbase .......................... : 1380mm
Minimum floor .......................... : 130mm
Weight (without oil and gasoline) .......................... : 166kg
Weight (with oil and full fuel tank) .......................... : 188kg
Engine Type .......................... : 4-stroke DOHC, liquid cooled
Arrangement of cylinders .......................... : 4 cylinders in line, tilted forward
Cyl .......................... : 599cc
Bore and stroke .......................... : 67.0 x 42.5mm
Compression ratio .......................... : 13.1:1
Maximum Power .......................... : 88.0 kw (135..r/min)
Maximum torque .......................... : 64.3 Nm (11000r/min)
Start .......................... : Electric
Type of lubrication .......................... : Wet sump
Fuel Tank Capacity .......................... : 17.3 L
On .......................... : TCI
Battery Capacity .......................... : 12V 8.6AH
Battery .......................... : YTZ10S
Reduction ratio of primary / secondary .......................... : Gear  85/41 2073
Reduction ratio of primary / secondary .......................... : Channel  45/16 2813
Type of clutch .......................... : Wet multiplate with coil spring
Transmission type .......................... : Transmission 6-speed constant
Gear Ratio..........................
Gear ratio in 1st .......................... : 31/12 2.583
Transmission ratio in 2 .......................... : 32/16 2.000
Gear ratio in 3rd .......................... : 30/18 1.667
Gear ratio in 4th .......................... : 26/18 1.444
Gear ratio in 5th .......................... : 27/21 1.286
In 6th gear ratio .......................... : 23/20 1.150
Frame type .......................... : Deltabox
Tilt / forward .......................... : 24 °
Tilt / forward .......................... : 97mm
Front Wheel .......................... : 120/70ZR17
Rear Wheel .......................... : 180/55ZR17
Front brake .......................... : Double disc
Back brake .......................... : Disk
Front suspension type .......................... : Telescopic fork
Rear suspension type .......................... : Tilt (For tie rods)
Head Light  .......................... : Halogen bulb
Head Light  .......................... : 12V 55W X 2

2. Yamaha YZF-R1




Untuk Spesifikasinya :

Total length .......................... : 2070mm
Overall Width .......................... : 715mm
Overall height .......................... : 1130mm
the seat height .......................... : 835mm
Wheelbase .......................... : 1415mm
Minimum floor .......................... : 135mm
Weight (without oil and gasoline) .......................... : -
Weight (with oil and full fuel tank) .......................... : 206kg
Engine Type .......................... : 4-stroke DOHC, liquid cooled
Arrangement of cylinders  .......................... : 4 cylinders in line, tilted forward
Cyl .......................... : 998cc
Bore and stroke .......................... : 78.0 x 52.2mm
Compression ratio .......................... : 12.7:1
Maximum Power..........................
Maximum torque  .......................... : 114.5 Nm (10000r/min)
Start ..........................: Electric
Type of lubrication .......................... : Wet sump
Fuel Tank Capacity .......................... : 18L
On .......................... : TCI
Battery Capacity .......................... : 12V 8.6AH
Battery .......................... : YTZ10S
Reduction ratio of primary / secondary .......................... : Gear  65/43 1512
Reduction ratio of primary / secondary .......................... : Channel 47/17 2765
Type of clutch .......................... : Wet multiplate with coil spring
Transmission type .......................... : Transmission 6-speed constant
Gear Ratio..........................
Gear ratio in 1st .......................... : 38/15 2.533
Transmission ratio in 2 .......................... : 33/16 2.062
Gear ratio in 3rd .......................... : 37/21 1.762
Gear ratio in 4th .......................... : 35/23 1.522
Gear ratio in 5th .......................... : 30/22 1.364
In 6th gear ratio .......................... : 33/26 1.269
Frame type .......................... : Deltabox
Tilt / forward .......................... : 24 °
Tilt / forward .......................... : 102mm
Front Wheel .......................... : 120/70ZR17
Rear Wheel .......................... : 190/50ZR17
Front brake .......................... : Double disc
Back brake .......................... : Disk
Front suspension type .......................... : Telescopic fork
Rear suspension type .......................... : Tilt (For tie rods)
Head Light .......................... : Halogen bulb
Head Light .......................... : 12V 55W X 1

3. Yamaha FZ 1



Untuk Spesifikasinya :

Total length..........................
Overall Width..........................
Overall height..........................
the seat height..........................
Wheelbase..........................
Minimum floor..........................
Weight (without oil and gasoline)..........................
Weight (with oil and full fuel tank)
Engine Type .......................... : 4-stroke DOHC, liquid cooled
Arrangement of cylinders .......................... : 4 cylinders in line, tilted forward
Cyl .......................... : 998cc
Bore and stroke  .......................... : 77.0 x 53.6mm
Compression ratio .......................... : 11.5:1
Maximum Power .......................... : 147.9 hp at 11000 rpm
Maximum torque..........................
Start .......................... : Electric
Type of lubrication .......................... : Wet sump
Fuel Tank Capacity .......................... : 18L
On .......................... : TCI
Battery Capacity .......................... : 12V 11.2AH
Battery  .......................... : YTZ14S
Reduction ratio of primary / secondary .......................... : Gear
65/43 1512
Reduction ratio of primary / secondary .......................... : Channel 47/17 2765
Type of clutch .......................... : Wet multiplate with coil spring
Transmission type .......................... : Transmission 6-speed constant
Gear Ratio..........................
Gear ratio in 1st .......................... : 38/15 2.533
Transmission ratio in 2 .......................... : 33/16 2.062
Gear ratio in 3rd .......................... : 37/21 1.762
Gear ratio in 4th .......................... : 35/23 1.522
Gear ratio in 5th .......................... : 27/20 1.350
In 6th gear ratio .......................... : 29/24 1.208
Frame type .......................... : Diamond
Tilt / forward .......................... : 25 °
Tilt / forward .......................... : 109mm
Front Wheel .......................... : 120/70ZR17
Rear Wheel .......................... : 190/50ZR17
Front brake .......................... : Double disc
Back brake .......................... : Disk
Front suspension type  .......................... : Telescopic fork
Rear suspension type .......................... : Tilt (For tie rods)
Head Light .......................... : Halogen bulb
Head Light .......................... : 12V 60/55W X 1

4. Yamaha FZ8N




Untuk Spesifikasinya :

Total length..........................
Overall Width ..........................
Overall height ..........................
the seat height ..........................
Wheelbase ..........................
Minimum floor ..........................
Weight (without oil and gasoline)..........................
Weight (with oil and full fuel tank)..........................
Engine Type .......................... : 4-stroke DOHC, liquid cooled
Arrangement of cylinders .......................... : 4 cylinders in line, tilted forward
Cyl .......................... : 779cc
Bore and stroke .......................... : 68.0 x 53.6mm
Compression ratio .......................... : 12.0:1
Maximum Power .......................... : 78.1kw (10000 r / min)
Maximum torque .......................... : 82.0 Nm (8000 r / min)
Start .......................... : Electric
Type of lubrication .......................... : Wet sump
Fuel Tank Capacity ..........................
On .......................... : TDI
Battery Capacity ..........................
Battery ..........................
Reduction ratio of primary / secondary .......................... : Gear  65/43 1512
Reduction ratio of primary / secondary .......................... : Channel  46/16 2875
Type of clutch .......................... : Wet multiplate with coil spring
Transmission type .......................... : Transmission 6-speed constant
Gear Ratio..........................
Gear ratio in 1st .......................... : 35/13 2.692
Transmission ratio in 2 .......................... : 33/16 2.063
Gear ratio in 3rd .......................... : 37/21 1.762
Gear ratio in 4th .......................... : 35/23 1.522
Gear ratio in 5th .......................... : 27/20 1.350
In 6th gear ratio .......................... : 29/24 1.208
Frame type ..........................
Tilt / forward  ..........................
Tilt / forward  ..........................
Front Wheel ..........................
Rear Wheel ..........................
Front brake ..........................
Back brake ..........................
Front suspension type ..........................
Rear suspension type ..........................
Head Light ..........................
Head Light ..........................
Colours ..........................

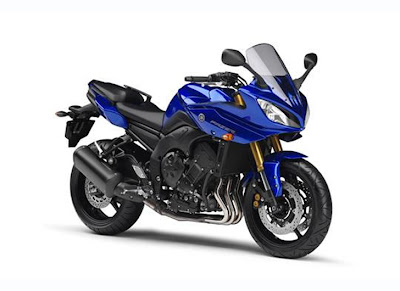

5. Yamaha FZ8



Untuk Spesifikasinya :

Total length ..........................
Overall Width ..........................
Overall height ..........................
the seat height ..........................
Wheelbase ..........................
Minimum floor ..........................
Weight (without oil and gasoline) ..........................
Weight (with oil and full fuel tank) ..........................
Engine Type .......................... : 4-stroke DOHC, liquid cooled
Arrangement of cylinders .......................... : 4 cylinders in line, tilted forward
Cyl .......................... : 779cc
Bore and stroke .......................... : 68.0 x 53.6mm
Compression ratio .......................... : 12.0:1
Maximum Power .......................... : 78.1kw (10000 r / min)
Maximum torque .......................... : 82.0 Nm (8000 r / min)
Start .......................... : Electric
Type of lubrication .......................... : Wet sump
Fuel Tank Capacity ..........................
On .......................... : TDI
Battery Capacity ..........................
Battery ..........................
Reduction ratio of primary / secondary .......................... : Gear 65/43 1512
Reduction ratio of primary / secondary .......................... : Channel 46/16 2875
Type of clutch .......................... : Wet multiplate with coil spring
Transmission type .......................... : Transmission 6-speed constant
Gear Ratio..........................
Gear ratio in 1st .......................... : 35/13 2.692
Transmission ratio in 2  .......................... : 33/16 2.063
Gear ratio in 3rd .......................... :37/21 1.762
Gear ratio in 4th .......................... :35/23 1.522
Gear ratio in 5th .......................... :27/20 1.350
In 6th gear ratio .......................... :29/24 1.208
Frame type ..........................
Tilt / forward ..........................
Tilt / forward ..........................
Front Wheel ..........................
Gear Wheel ..........................
Front brake ..........................
Back brake ..........................
Front suspension type ..........................
Rear suspension type ..........................
Lead Light ..........................
Head Light ..........................
Colours ..........................

12 komentar:

  1. Knp ga ad daftar harga ny d tiap2 tipe.?

    BalasHapus
  2. Knp ga ad daftar harga ny d tiap2 tipe.?

    BalasHapus
  3. Iya neeh...ga ada harganyaa..berapa duit...???

    BalasHapus
  4. daftar harga ,bíar bz ngumpulin dollar nich buat dapetinya...

    BalasHapus
  5. baguz",keren skali!!! Kpn yah bz punya mtr ky !tu...

    BalasHapus
  6. areskur tak seperty dulu17 November 2012 15.16

    mana bro daftar hargannya,,,biar bisa bandingin ama kawasaki ninja 4tak,,,,

    BalasHapus
  7. parah ni, ada motor tapi ga ada daftar hatga, kecawa ni pengunjung.:|

    BalasHapus
  8. pasti harganya 200jt ke atas kalo udah d jual di indonesia.
    padahal kalo d amrik cuma sktr 100jt-an

    BalasHapus
  9. buat R1 harga ny $14.xxx

    BalasHapus
  10. Harganya ±110 juta mass... Pajak ±55 juta, Harga 1pcs sekitar 120jutaan mass.. Di tambah pajak 60 juta biaya OTRnya gk tentu, Biaya yang lain ±60jutaan... Hitungan bersihnya ya sekitar ±Rp. 320.000.000,-

    BalasHapus
  11. Kurang jelas? Komentar lagi saja ^_^ 1x24Jam

    BalasHapus

Terima kasih bagi sobat semua yang sudah berkunjung dan berkomentar pada blog Ini. Silahkan berkomentar dengan sopan dan baik. Pengunjung yang baik pasti akan memberikan saran dan komentar yang baik. Terima kasih

Related Posts Plugin for WordPress, Blogger...
